Shadowsocks to Tor: Why It Failed as a VPN Alternative

Well, the time has come, and I’ve decided to update, clean up, and generally re-think my “home” infrastructure. This part is only about a (mostly failed) networking setup.

What do I have and what do I want? I have a few virtual private servers (VPS) from different hosting providers, a Raspberry Pi, a PlayStation, some PCs at home, and mobile phones. The goal is to set up simple monitoring of the VPSs, build a dashboard on the Raspberry Pi, and have the ability to deploy services without constantly worrying about security. I also want to occasionally access the internet from third-party regions and IP addresses, with the ability to add more infrastructure without pain. Something similar to the scheme below:

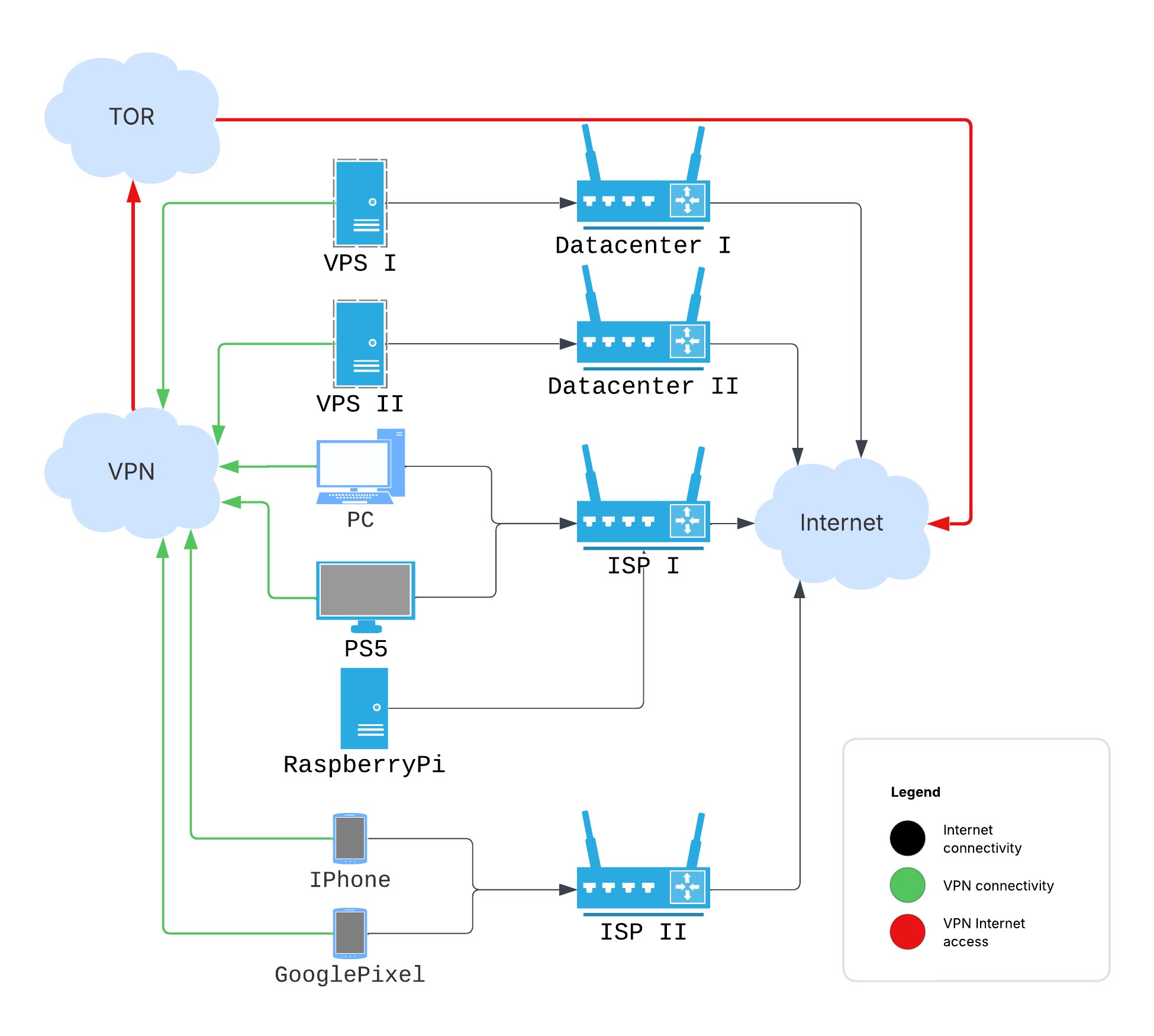

Network topology diagram for Shadowsocks and Tor setup

And because it’s a truly multi-tenant setup involving many different internet service providers, I want to make it reliable and free from ISP spying. That’s why I explored using Shadowsocks (specifically sslocal in TUN mode) to create a VPN-like routed network. A main selling point of Shadowsocks is its ability to circumvent censorship, which aligns with my requirements. So, here’s the story (as there isn’t much information available about Shadowsocks in this particular action).

For those in a hurry, here are the prepared Ansible playbooks: https://github.com/irr123/shadowsocks-to-tor

# Tor

I started with the simplest part – setting up Tor. I trust you’ve likely already heard about Tor, at least the Tor Browser; if not, then take a look. In my case, I only needed to set up the daemon (without the browser) and route the VPN’s external traffic through it. (Spoiler: this part works almost perfectly).

# Configuration

According to https://support.torproject.org/apt/tor-deb-repo/, you have to install the necessary packages, and the daemon will start automatically.

Before installation, let’s write the config to /etc/tor/torrc:

AutomapHostsOnResolve 1
AutomapHostsSuffixes .onion,.exit
AvoidDiskWrites 1
DNSPort 127.0.0.1:9053
TransPort 127.0.0.1:9040
SocksPort 127.0.0.1:9050

Checking:

torify curl https://check.torproject.org | grep "Congrat"
...
Congratulations. This browser is configured to use Tor.

Simple enough, Tor is too mature technology to introduce issues in default configuration.

# Shadowsocks

I’m using the Rust implementation, which consists of several components (and it’s quite problematic to initially clarify what each of them is responsible for, based on their docs):

ssserver: Actually a service that accepts client connections and forwards traffic externally.
sslocal: A client, like the one found at https://github.com/shadowsocks/shadowsocks-windows/releases.
ssmanager: A utility that allows for dynamic management of server instances and provides some observability statistics.
ssservice: A unified entrypoint to manage all previous commands (?), plus a password generator.
ssurl: A utility to generate links like ss://ENCODED_CONFIG@SERVER_ADDRESS:SERVER_PORT, which can then be encoded into a QR-code and easily applied on a mobile phone, for example.

# Configuration

The docs provide many different installation options, from regular Linux repos and snaps to Docker images and self-built binaries. I decided to use pre-built binaries from github releases page. The same applies to managing the service lifecycle – systemd, supervisord, self-managed, Docker/k8s; systemd is my choice. Here’s the systemd unit file at /etc/systemd/system/shadowsocks-server.service:

[Unit]
Description=Shadowsocks-rust Server Service
Documentation=https://github.com/shadowsocks/shadowsocks-rust
After=network.target network-online.target
Wants=network-online.target

[Service]
Type=simple
User=ssuser
Group=ssuser
ExecStart=/opt/shadowsocks/v1.23.4/ssserver -c /opt/shadowsocks/v1.23.4/config.json
WorkingDirectory=/opt/shadowsocks/v1.23.4
LimitNOFILE=51200
Restart=always
RestartSec=5s

[Install]
WantedBy=multi-user.target

An important part here is the dedicated user. Create it manually, as this user will be referenced in the iptables rules implemented later:

useradd --system --shell /usr/sbin/nologin --no-create-home ssuser

Additionally, you will need /opt/shadowsocks/v1.23.4/config.json (the exact locations are up to you):

{
  "server": "0.0.0.0",
  "server_port": 8388,
  "local_port": 1080,
  "password": "YOUR_GENERATED_PASSWORD_HERE",
  "method": "chacha20-ietf-poly1305",
  "mode": "tcp_and_udp"
}

First, generate the password by running (it’s included with the shadowsocks-rust binaries):

ssservice genkey --encrypt-method chacha20-ietf-poly1305

Then, copy the output and paste it as the value for the “password” field above.

Enable and start the service; that’s almost all:

systemctl enable shadowsocks-server.service
systemctl start shadowsocks-server.service

After this, you could configure any client, like the Windows one I mentioned previously. It will pass your traffic through the set-up VPS. Configure a local/global/PAC SOCKS5 proxy and try myip.wtf. With the server set up like this, the next step is to route its outgoing traffic through Tor.

Don’t forget, all these parts are already automated by the Ansible playbook.

# Connecting Shadowsocks with Tor

Now let’s complete our setup by applying these iptables rules on the VPS running ssserver and Tor:

# Create a new chain for Tor output
iptables -t nat -N TOR_OUTPUT || /bin/true

# Route all output from the 'ssuser' to our new TOR_OUTPUT chain
iptables -t nat -A OUTPUT -m owner --uid-owner ssuser -j TOR_OUTPUT

# Exclude private/reserved networks from Tor redirection (adjust as needed)
iptables -t nat -A TOR_OUTPUT -d 0.0.0.0/8 -j RETURN
iptables -t nat -A TOR_OUTPUT -d 10.0.0.0/8 -j RETURN
iptables -t nat -A TOR_OUTPUT -d 172.16.0.0/12 -j RETURN
iptables -t nat -A TOR_OUTPUT -d 192.168.0.0/16 -j RETURN
iptables -t nat -A TOR_OUTPUT -d 127.0.0.0/8 -j RETURN # Localhost traffic
iptables -t nat -A TOR_OUTPUT -d <VPS public address> -j RETURN # Traffic to VPS itself

# Redirect TCP traffic
iptables -t nat -A TOR_OUTPUT -p tcp -m tcp --syn -j REDIRECT --to-ports 9040

# Redirect DNS UDP
iptables -t nat -A TOR_OUTPUT -p udp --dport 53 -j REDIRECT --to-ports 9053

# Persist the rules
netfilter-persistent save

Now try to recheck https://myip.wtf through your Shadowsocks client, and you should see an IP address from the Tor network.

# Some Limitations (and why I count it as a failed setup)

In general, this might be a good enough setup for particular cases. For example, when checking https://dnsleaktest.com, DNS requests are not leaking through the Shadowsocks-Tor setup. WebRTC, on the other hand, could expose your real address; potential solutions might involve aggressive measures like blocking all UDP traffic, which I wasn’t prepared to do.

Another disadvantage – this setup doesn’t reliably resolve .onion addresses for the end client, while on the VPS it works. On the client, it somehow fails. (I didn’t dig too deeply into this because of a more significant issue for me).

Fun and less important, but confusing - the Shadowsocks icon for some clients is too similar to the Telegram icon. Gets me every time.

And the most important issues for me:

Inter-Client Connectivity: The server provides problematic connectivity between clients set up in TUN mode. For example, in the Ansible playbook, I set up Linux clients in TUN mode in their own subnet (192.168.7.0/24). While ICMP (ping) worked between them, neither TCP nor UDP data packets were reliably passed end-to-end from one Shadowsocks client (e.g., my main server trying to reach another VPS also connected via sslocal) to another. TCP connections would appear to establish on the initiating client’s TUN interface, but no actual data would reach the destination client.
Client Limitations: The standard Windows client (and many others) doesn’t provide a system-wide VPN service; it’s only a SOCKS5/HTTP proxy. This means that you can only access the internet through applications configured to use the proxy. There’s no direct access to other devices in a private network (e.g., 192.168.7.x) if you’re trying to build one, nor does it tunnel all system traffic.

# Conclusion

As I mentioned at the start, while the Shadowsocks protocol itself is likely great for its core purpose (circumventing DPI and proxying traffic), the standard ssserver tool isn’t designed to build a fully-featured, routed private network between all connected clients. It excels as a secure proxy, but for creating a VPN where all devices can seamlessly communicate as if on a local network, it falls short.

Or at least, I didn’t find a solution using just Shadowsocks to achieve all my networking goals for this internal infrastructure. Reverting WireGuard 😌
